ZND Calculation Results



Table: Mixture list from [Ross and Shepherd (1996)], Table E.1, plus two additional mixtures (27 and 28)
No. H2 N2O NH3 CH4
  (%) (%) (%) (%)
1 100 0 0 0
2 85 0 15 0
3 70 0 30 0
4 50 0 50 0
5 95 0 0 5
6 80 0 15 5
7 65 0 30 5
8 45 0 50 5
9 50 50 0 0
10 42.5 42.5 15 0
11 35 35 30 0
12 25 25 50 0
13 47.5 47.5 0 0
14 40 40 15 5
15 32.5 32.5 30 5
16 22.5 22.5 50 5
17 33.3 66.7 0 0
18 28.3 56.7 15 0
19 23.3 46.7 30 0
20 16.7 33.3 50 0
21 31.7 63.3 0 5
22 26.7 53.3 15 5
23 21.7 43.3 30 5
24 15 30 50 5
25 33 53 14 0
26 42 36 21 1
27 4 4 2 0
28 35 35 10 20

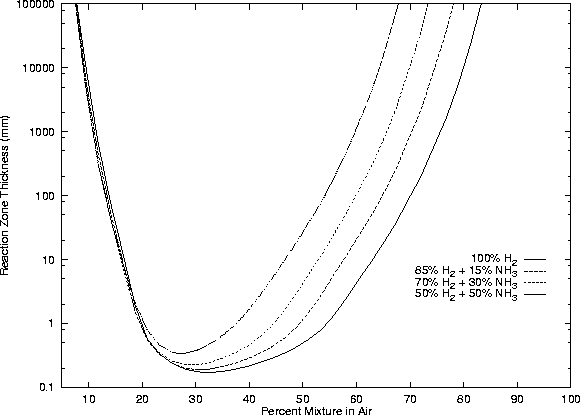

Figure: ZND reaction zone thickness calculations for [Ross and Shepherd (1996)] mixtures 1, 2, 3, and 4
\begin{figure} \centering \epsfig{file=mixes/plot1.ps, height=5.2in, angle=270} \end{figure}



Figure: ZND reaction zone thickness calculations for [Ross and Shepherd (1996)] mixtures 5, 6, 7, and 8
\begin{figure} \centering \epsfig{file=mixes/plot2.ps, height=5.2in, angle=270} \end{figure}

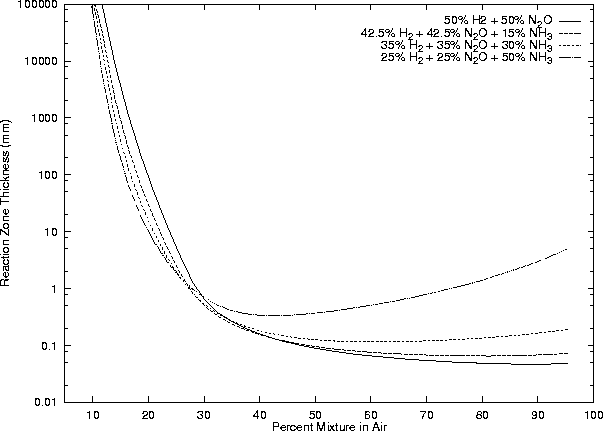

Figure: ZND reaction zone thickness calculations for [Ross and Shepherd (1996)] mixtures 9, 10, 11, and 12
\begin{figure} \centering \epsfig{file=mixes/plot3.ps, height=5.4in, angle=270} \end{figure}

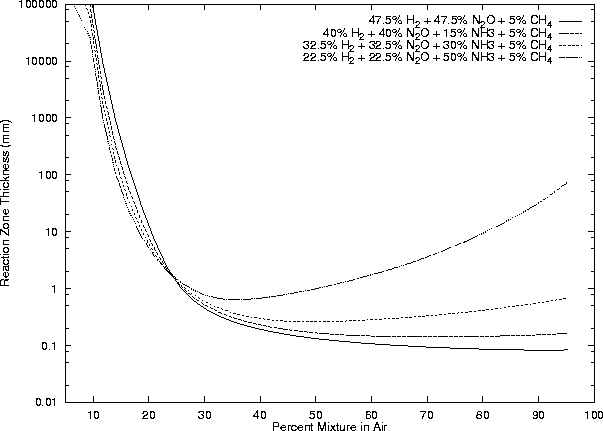

Figure: ZND reaction zone thickness calculations for [Ross and Shepherd (1996)] mixtures 13, 14, 15, and 16
\begin{figure} \centering \epsfig{file=mixes/plot4.ps, height=5.4in, angle=270} \end{figure}



Figure: ZND reaction zone thickness calculations for [Ross and Shepherd (1996)] mixtures 17, 18, 19, and 20
\begin{figure} \centering \epsfig{file=mixes/plot5.ps, height=5.4in, angle=270} \end{figure}

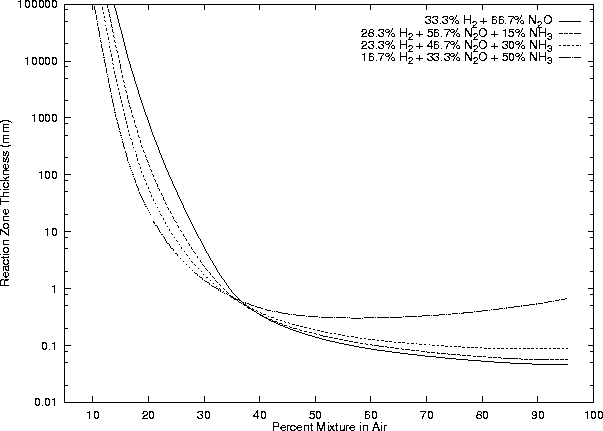

Figure: ZND reaction zone thickness calculations for [Ross and Shepherd (1996)] mixtures 21, 22, 23, and 24
\begin{figure} \centering \epsfig{file=mixes/plot6.ps, height=5.4in, angle=270} \end{figure}

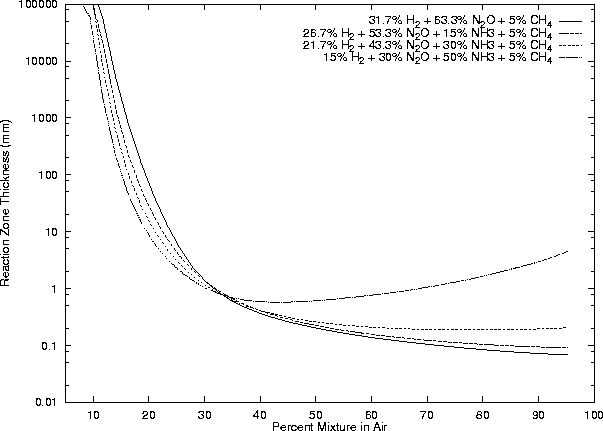

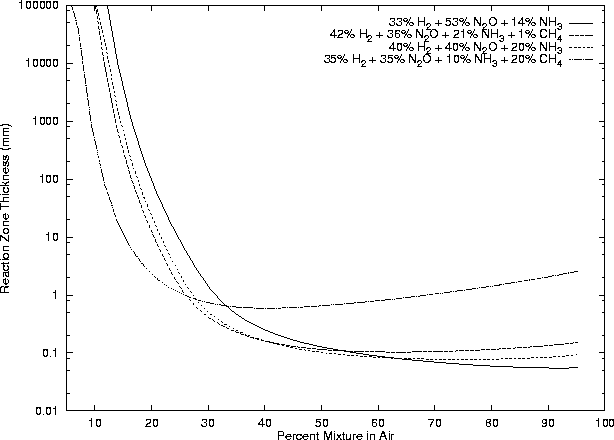

Figure: ZND reaction zone thickness calculations for [Ross and Shepherd (1996)] mixtures 25, 26, 27, and 28
\begin{figure} \centering \epsfig{file=mixes/plot7.ps, height=5.5in, angle=270} \end{figure}

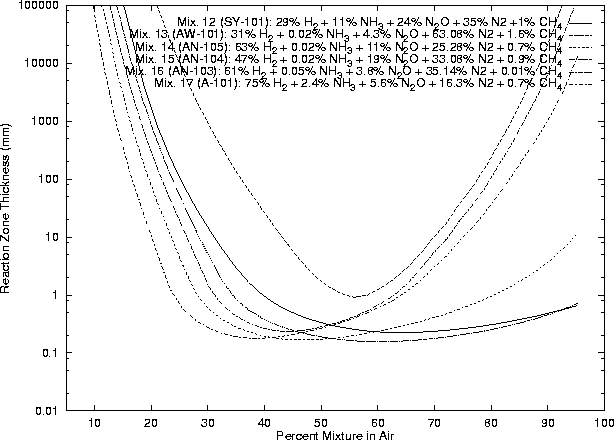

Figure: ZND reaction zone thickness calculations for Table 1 mixtures 12, 13, 14, 15, 16, and 17
\begin{figure} \centering \epsfig{file=mixes/plot8.ps, height=5.5in, angle=270} \end{figure}
