Detonation Database

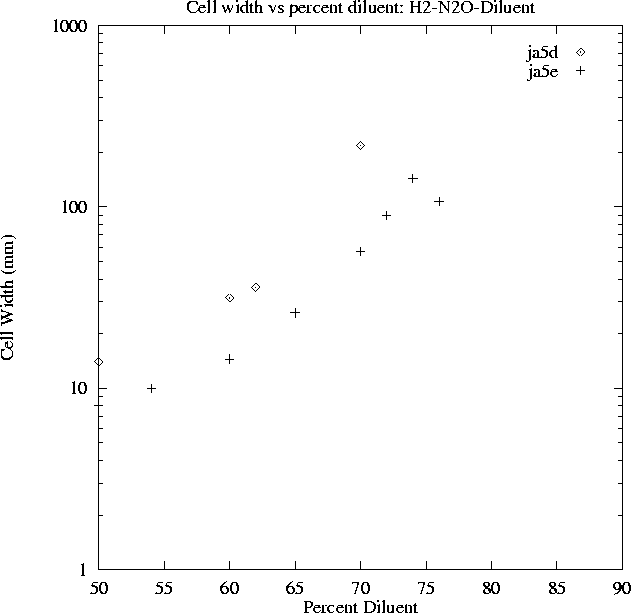

Cell width vs percent diluent; H2-N2O-Diluent

Postscript Version

ja5d.txt Akbar (1997) [3] P=100 kPa, ER=1, 50-70% N2, Oxidizer=N2O

ja5e.txt Akbar (1997) [3] P=70-100 kPa, ER=0.07-0.39, 28-76% Air, Oxidizer=N2O
