Detonation Database

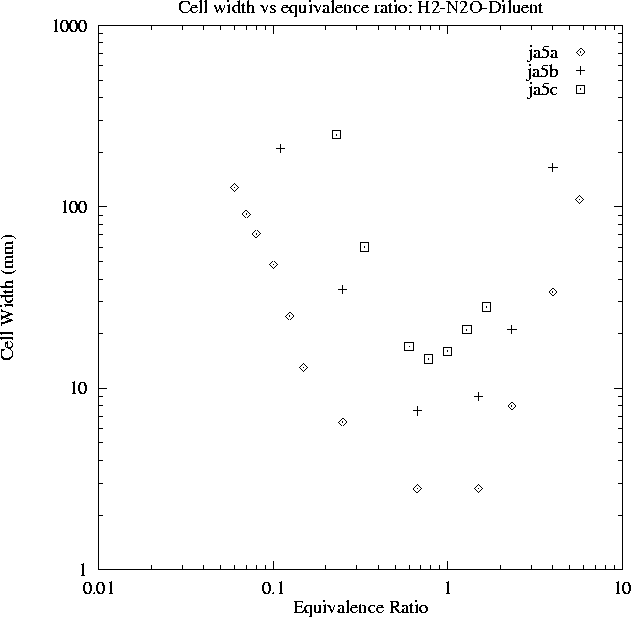

Cell width vs equivalence ratio; H2-N2O-Diluent

Postscript Version

ja5a.txt Pfahl (1998) [98] T=293 K, P=70.9 kPa

ja5b.txt Pfahl (1998) [98] T=293 K, P=70.9 kPa, 30% N2

ja5c.txt Pfahl (1998) [98] T=293 K, P=70.9 kPa, 54.5% N2
