Detonation Database

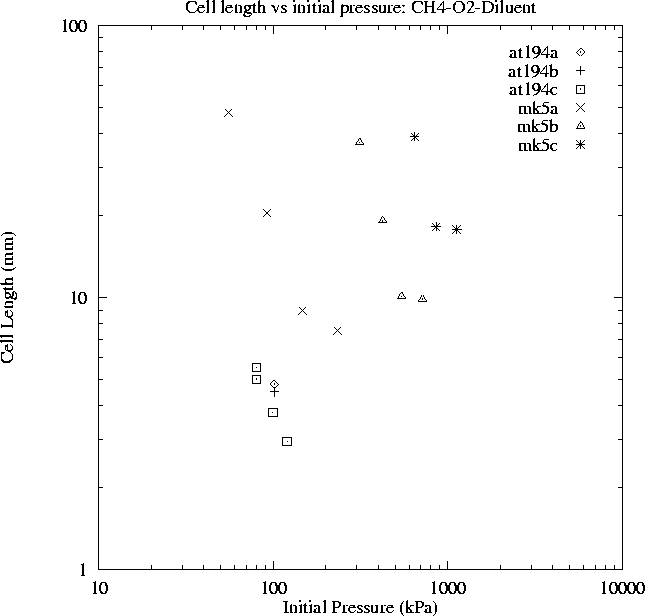

Cell length vs initial pressure; CH4-O2-Diluent

Postscript Version

at194a.txt Bauer (1985) [10] T=293 K, ER=1

at194b.txt Bull (1982) [27] T=293 K, ER=1

at194c.txt Aminallah (1993) [4] T=293 K, ER=1

mk5a.txt Bauer (1986) [12] T=293 K, ER=1.08, 31.9% N2

mk5b.txt Bauer (1986) [12] T=293 K, ER=1.09, 55.0% N2

mk5c.txt Bauer (1986) [12] T=293 K, ER=1.15, 64.2% N2
