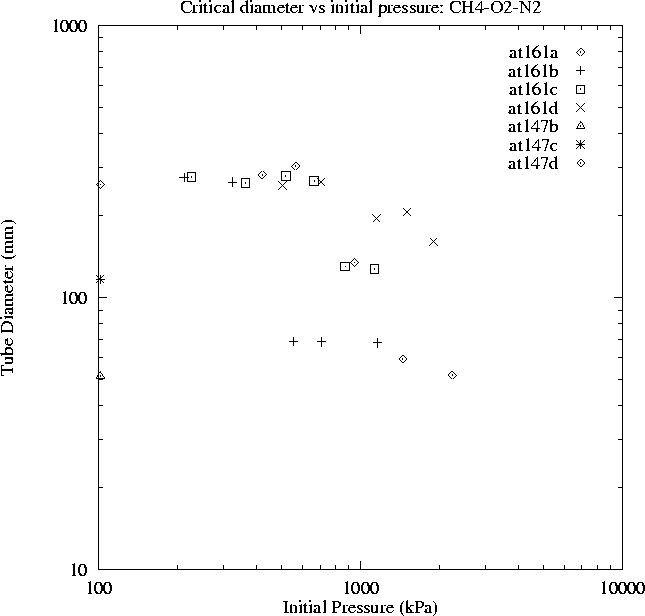

Critical diameter vs initial pressure; CH4-O2-N2

Postscript Version

at161a.txt Bauer (1984) [11] ER=1.08, 31.9% N2

at161b.txt Bauer (1984) [11] ER=1.09, 54.9% N2

at161c.txt Bauer (1984) [11] ER=1.15, 64.3% N2

at161d.txt Bauer (1984) [11] ER=1.09, 67.7% N2

at147b.txt Matsui (1979) [80] ER=1.3

at147c.txt Matsui (1979) [80] ER=1.3, 23% N2

at147d.txt Matsui (1979) [80] ER=1.3, 50% N2
