Detonation Database

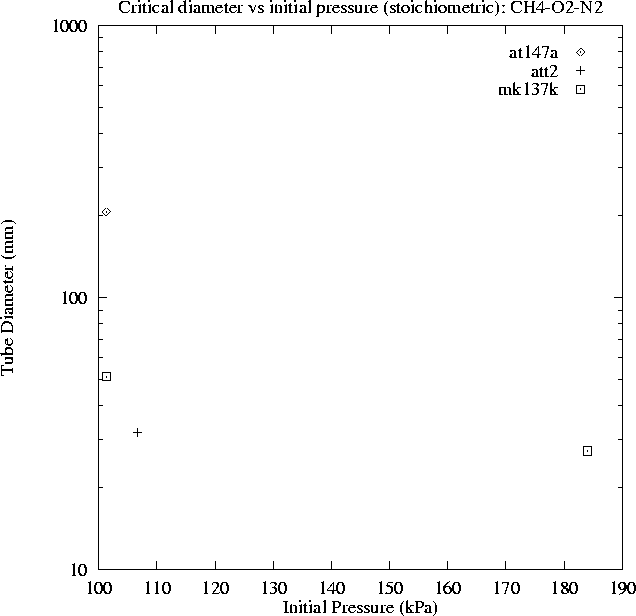

Critical diameter vs initial pressure (stoichiometric); CH4-O2-N2

Postscript Version

at147a.txt Knystautas (1982) [56] ER=1, 36.2% N2

att2.txt Zeldovich (1956) [129] ER=1

mk137k.txt Matsui (1979) [80] ER=1
