Detonation Database

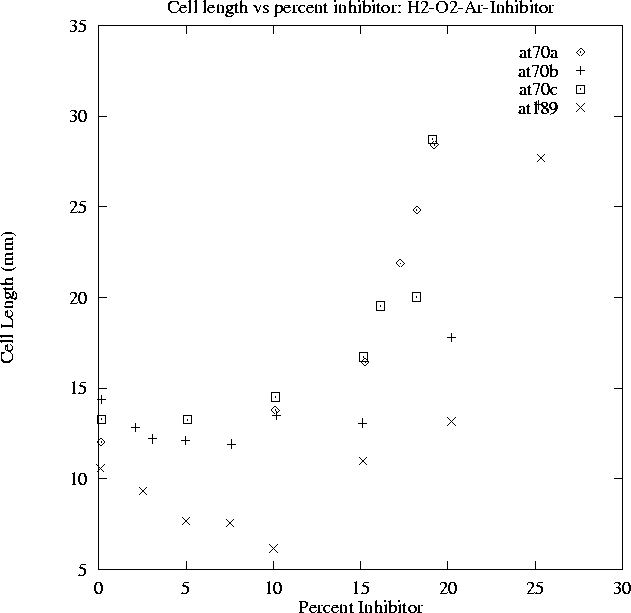

Cell length vs percent inhibitor; H2-O2-Ar-Inhibitor

Postscript Version

at70a.txt Nzeyimana (1991) [94] P=26.7 kPa, ER=0.8, 50% Ar+CF4

at70b.txt Nzeyimana (1991) [94] P=26.7 kPa, ER=1, 50% Ar+CF4

at70c.txt Nzeyimana (1991) [94] P=26.7 kPa, ER=1.2, 50% Ar+CF4

at189.txt Lefebvre (1993) [71] P=26.7 kPa, ER=1, 50% Ar+CF3H
