Detonation Database

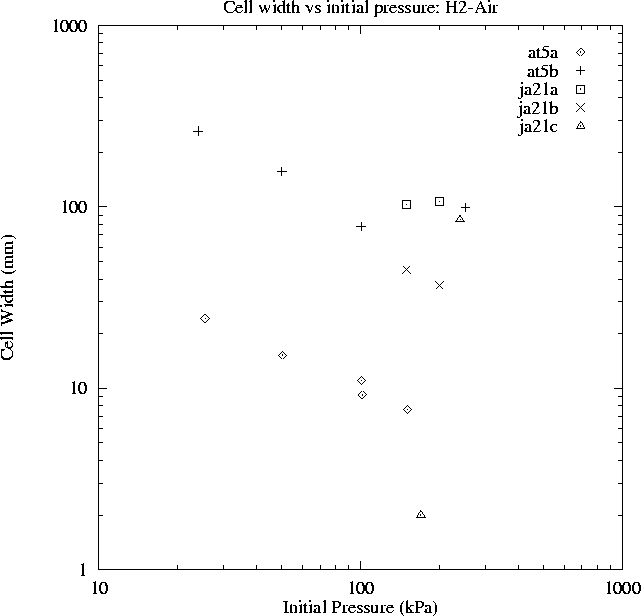

Cell width vs initial pressure; H2-Air

Postscript Version

at5a.txt Stamps (1991) [106] T=293 K, ER=1

at5b.txt Stamps (1991) [106] T=293 K, ER=0.5

ja21a.txt Ciccarelli (1997) [30] T=650 K, ER=0.5, 20% H2O

ja21b.txt Ciccarelli (1997) [30] T=650 K, ER=0.4, 30% H2O

ja21c.txt Ciccarelli (1997) [30] T=650 K, ER=0.2
