Detonation Database

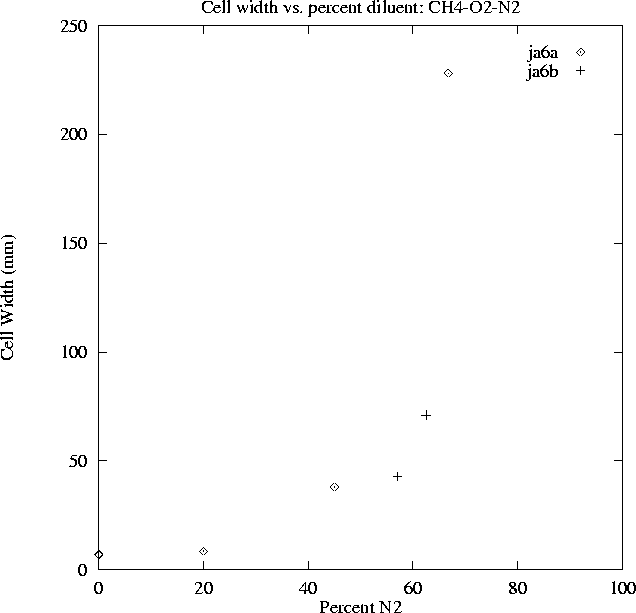

Cell width vs. percent diluent; CH4-O2-N2

Postscript Version

ja6a.txt Akbar (1997) [3] T=293 K, P=70-72 kPa

ja6b.txt Akbar (1997) [3] T=293 K, P=102 kPa
