Detonation Database

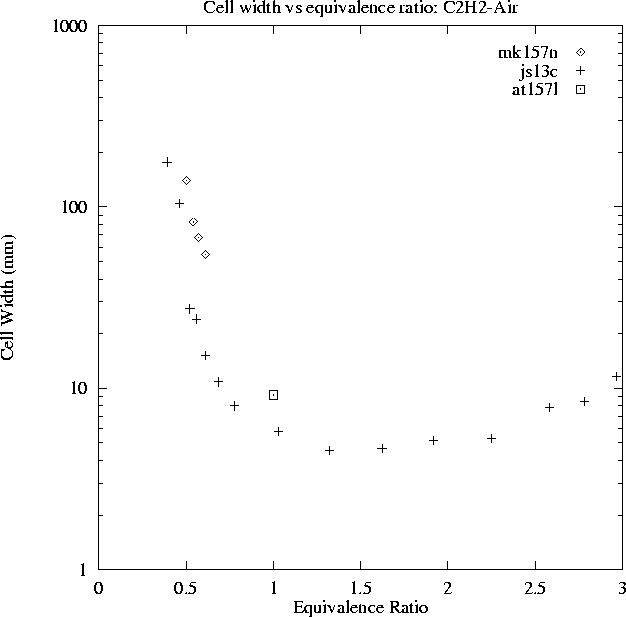

Cell width vs equivalence ratio; C2H2-Air

Postscript Version

mk157n.txt Moen (1984) [84] T=293 K, P=92.5 kPa

js13c.txt Knystautas (1984) [54] T=293 K, P=101.3 kPa

at157l.txt Bull (1982) [27] T=293 K, P=101.3 kPa
