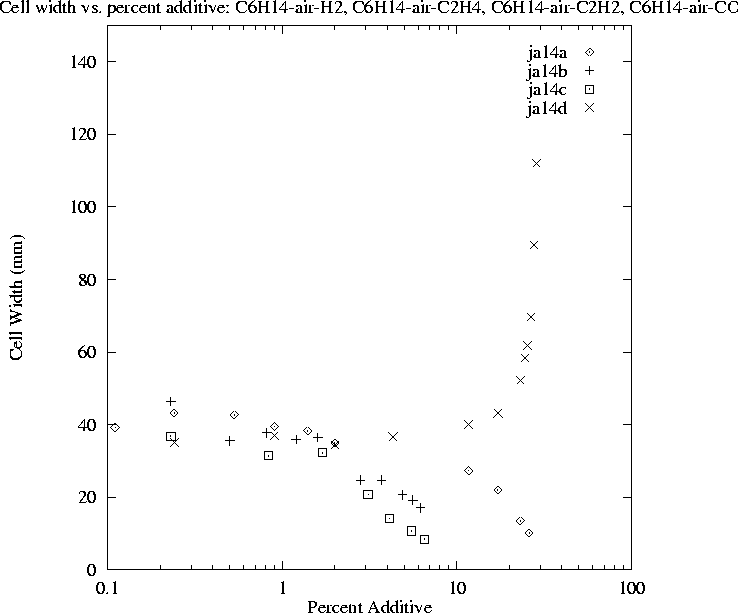

Cell width vs. percent additive; C6H14-air-H2, C6H14-air-C2H4, C6H14-air-C2H2, C6H14-air-CO

Postscript Version

ja14a.txt EDL (unpublished) [39] ER=1, 0-26% H2

ja14b.txt EDL (unpublished) [39] ER=1, 0-5.6% C2H4

ja14c.txt EDL (unpublished) [39] ER=1, 0-6.5% C2H2

ja14d.txt EDL (unpublished) [39] ER=1, 0-28.6% CO
