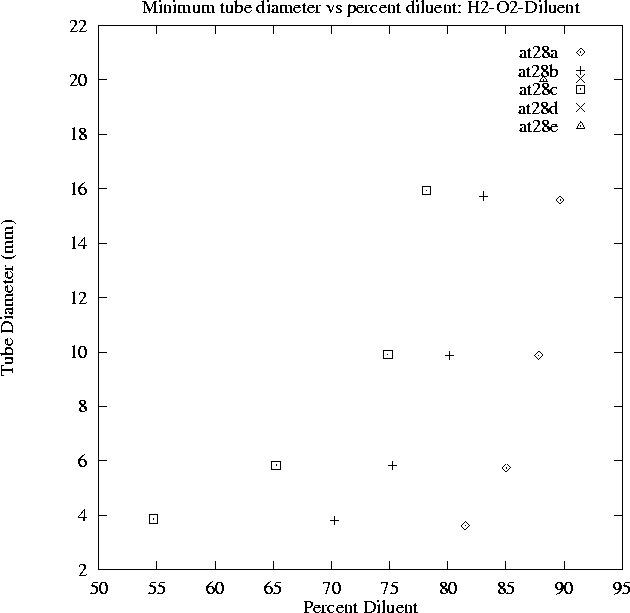

Minimum tube diameter vs percent diluent; H2-O2-Diluent

Postscript Version

at28a.txt Agafonov (1994) [2] T=298 K, P=100 kPa, ER=1, 80-90% Ar

at28b.txt Agafonov (1994) [2] T=298 K, P=100 kPa, ER=1, 70-80% He

at28c.txt Agafonov (1994) [2] T=298 K, P=100 kPa, ER=1, 55-75% N2

at28d.txt Agafonov (1994) [2] T=298 K, P=100 kPa, ER=1, 90% Ar

at28e.txt Agafonov (1994) [2] T=298 K, P=100 kPa, ER=1, 86% He

Edited Last: May 27, 2002
