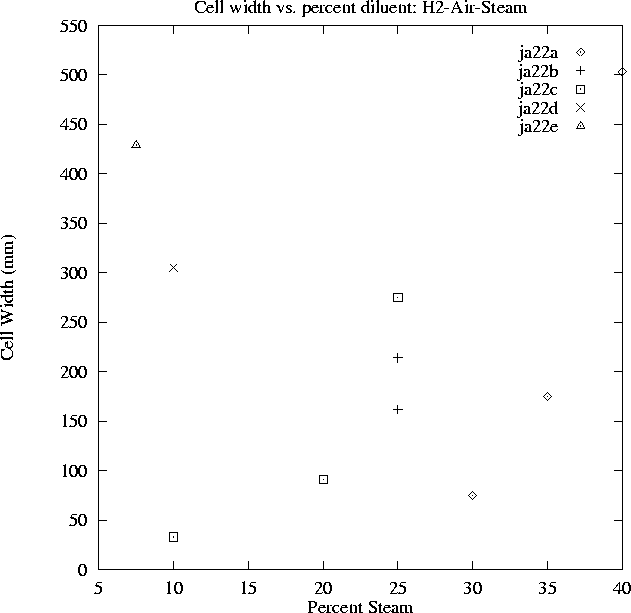

ja22a.txt Ciccarelli (1997) [30] T=650 K, P=100 kPa, ER=1
ja22b.txt Ciccarelli (1997) [30] T=400 K, P=100 kPa, ER=1
ja22c.txt Ciccarelli (1997) [30] T=650 K, P=100 kPa, ER=0.5
ja22d.txt Ciccarelli (1997) [30] T=400 K, P=100 kPa, ER=0.5
ja22e.txt Ciccarelli (1997) [30] T=650 K, P=100 kPa, ER=0.3
Edited Last: May 27, 2002
