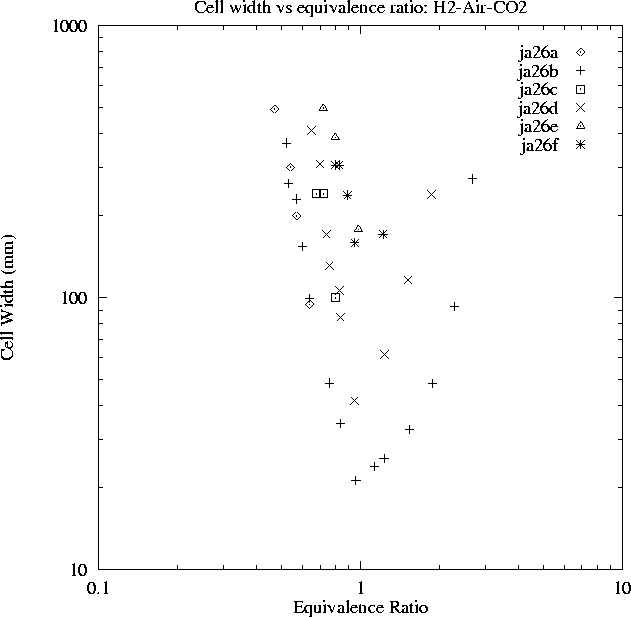

Cell width vs equivalence ratio; H2-Air-CO2

Postscript Version

ja26a.txt Tieszen (1987) [112] T=293 K, P=100 kPa, 5% CO2

ja26b.txt Guirao (1989) [49] T=293 K, P=100 kPa, 5% CO2

ja26c.txt Tieszen (1987) [112] T=293 K, P=100 kPa, 10% CO2

ja26d.txt Guirao (1989) [49] T=293 K, P=100 kPa, 10% CO2

ja26e.txt Tieszen (1987) [112] T=293 K, P=100 kPa, 15% CO2

ja26f.txt Guirao (1989) [49] T=293 K, P=100 kPa, 15% CO2

Edited Last: May 27, 2002
