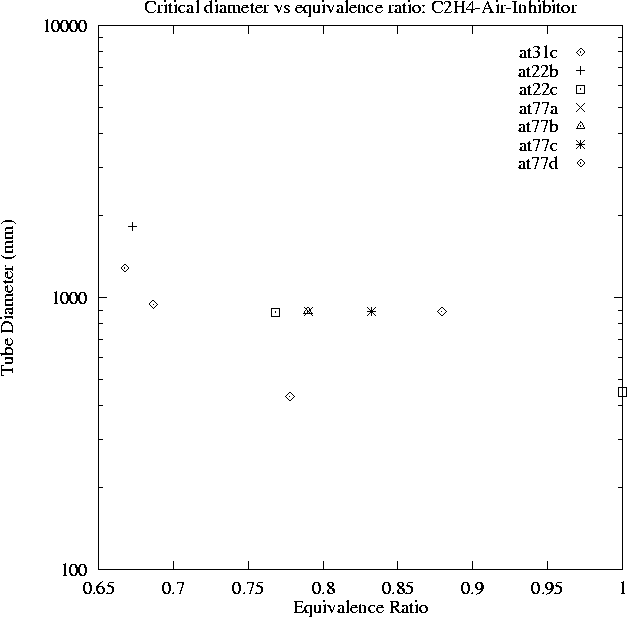

Critical diameter vs equivalence ratio; C2H4-Air-Inhibitor

Postscript Version

at31c.txt Rinnan (1982) [102]

at22b.txt Moen (1984) [84]

at22c.txt Moen (1982) [85]

at77a.txt Moen (1985) [87] 1.5% CF4

at77b.txt Moen (1985) [87] 1.5% CF3Br

at77c.txt Moen (1985) [87] 3% CF3Br

at77d.txt Moen (1985) [87] 3% CO2
