Soot Foil Photographs

In the soot foil photographs in this Appendix, the detonation wave propagated from top to bottom.

**Figure:** Shot 276: Typical small sized cells
$\begin{figure} \centering \epsfig{file=/home/strehlow/GDT/lanl/pics/276.eps, width=5.5in} \end{figure}$

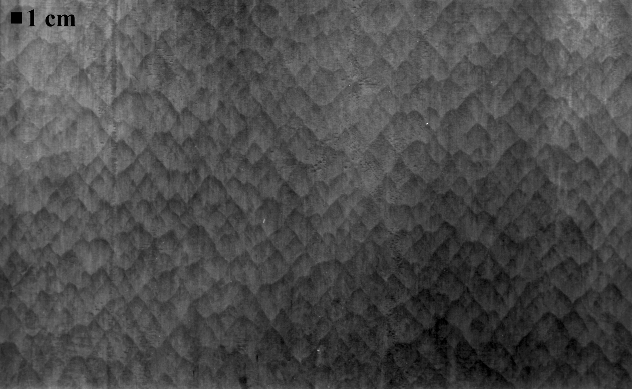

**Figure:** Shot 321: Typical medium sized cells
$\begin{figure} \begin{center} \epsfig{file=/home/strehlow/GDT/lanl/pics/321.eps, width=5.5in} \end{center}\end{figure}$

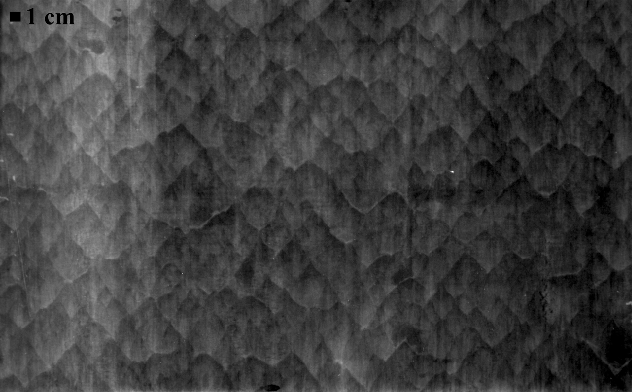

**Figure:** Shot 312: Typical large sized cells
$\begin{figure} \begin{center} \epsfig{file=/home/strehlow/GDT/lanl/pics/312.eps, width=5.5in} \end{center}\end{figure}$

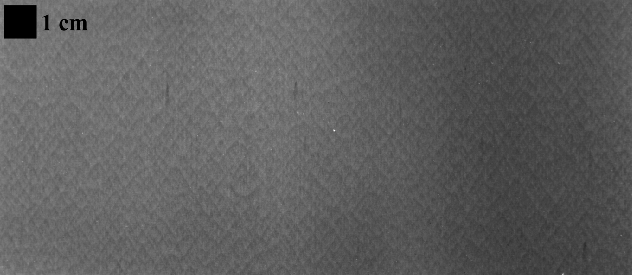

**Figure:** Shot 297: Typical irregular cells
$\begin{figure} \centering \epsfig{file=/home/strehlow/GDT/lanl/pics/297.eps, width=5.5in} \end{figure}$
