Detonation Database

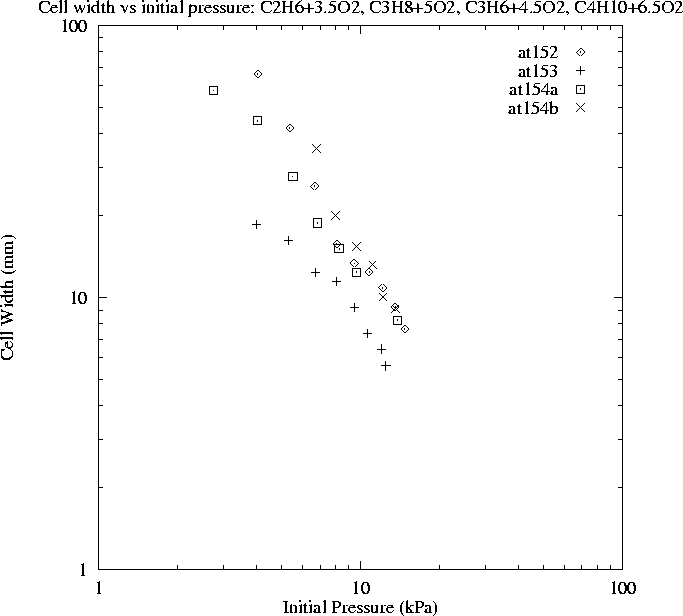

Cell width vs initial pressure; C2H6+3.5O2, C3H8+5O2, C3H6+4.5O2, C4H10+6.5O2

Postscript Version

at152.txt Knystautas (1982) [56] Fuel=C2H6

at153.txt Knystautas (1982) [56] Fuel=C3H6

at154a.txt Knystautas (1982) [56] Fuel=C3H8

at154b.txt Knystautas (1982) [56] Fuel=C4H10
