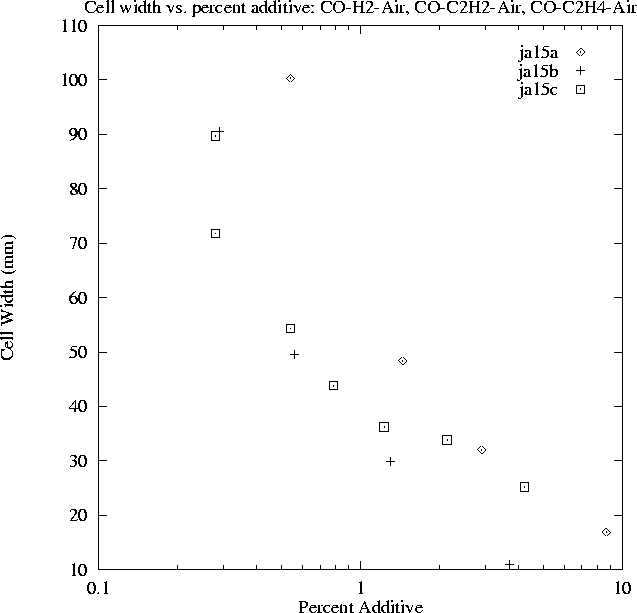

Cell width vs. percent additive; CO-H2-Air, CO-C2H2-Air, CO-C2H4-Air

Postscript Version

ja15a.txt EDL (unpublished) [39] P=100 kPa, ER=1, 0.54-8.7% H2

ja15b.txt EDL (unpublished) [39] P=100 kPa, ER=1, 0.29-3.71% C2H2

ja15c.txt EDL (unpublished) [39] P=100 kPa, ER=1, 0.28-4.23% C2H4

Edited Last: May 27, 2002
