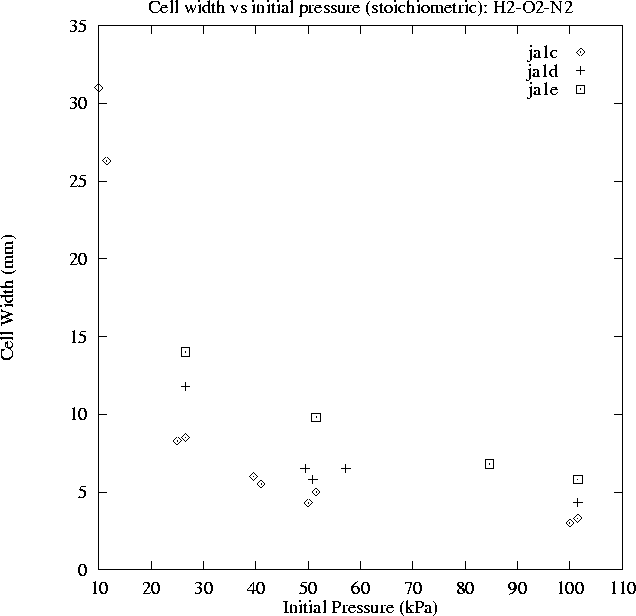

Cell width vs initial pressure (stoichiometric); H2-O2-N2

Postscript Version

ja1c.txt Kaneshige (1999) [53] T=293 K, ER=1, 25% N2

ja1d.txt Kaneshige (1999) [53] T=293 K, ER=1, 40% N2

ja1e.txt Kaneshige (1999) [53] T=293 K, ER=1, 50% N2
