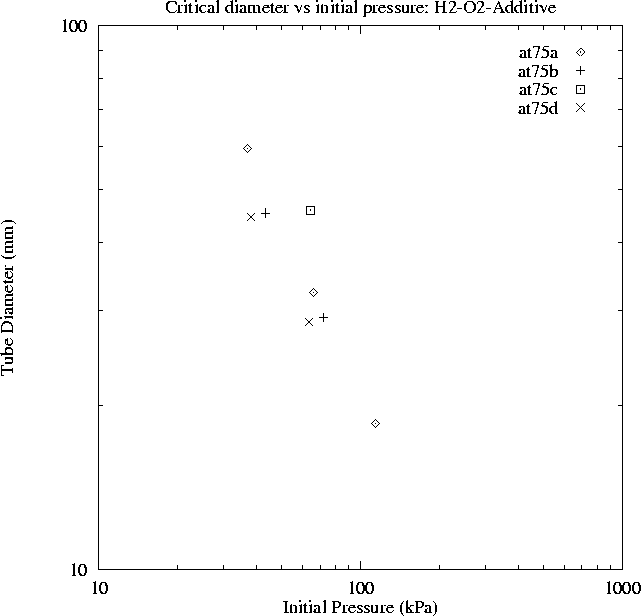

Critical diameter vs initial pressure; H2-O2-Additive

Postscript Version

at75a.txt Matsui (1979) [80] T=293 K, ER=1

at75b.txt Moen (1985) [87] T=293 K, ER=1

at75c.txt Moen (1985) [87] T=293 K, ER=1, 5% CO2

at75d.txt Moen (1985) [87] T=293 K, ER=1, 5% CF3Br
