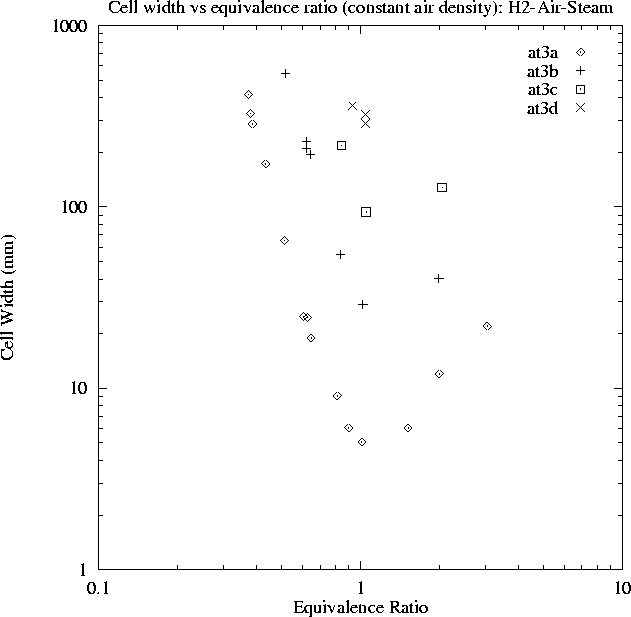

Cell width vs equivalence ratio (constant air density); H2-Air-Steam

Postscript Version

at3a.txt Tieszen (1986) [113] T=373 K, P=150 - 300 kPa

at3b.txt Tieszen (1986) [113] T=373 K, P=150 - 304 kPa, 10% steam

at3c.txt Tieszen (1986) [113] T=373 K, P=150 - 304 kPa, 20% steam

at3d.txt Tieszen (1986) [113] T=373 K, P=150 - 304 kPa, 30% steam
