Detonation Database

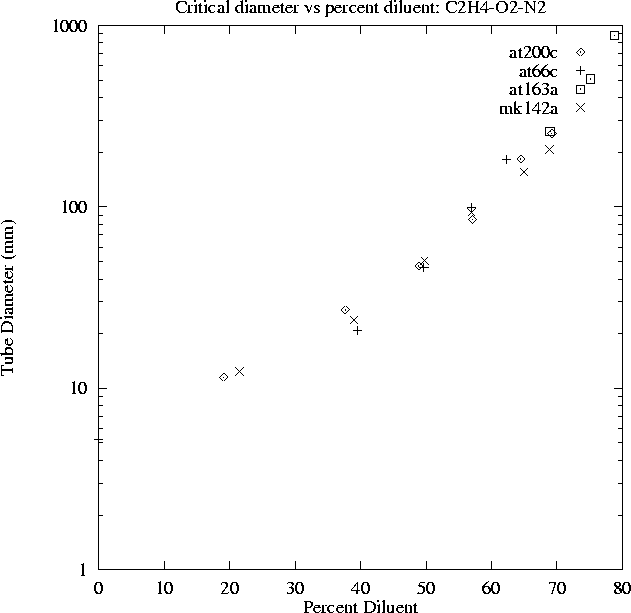

Critical diameter vs percent diluent; C2H4-O2-N2

Postscript Version

at200c.txt Moen (1981) [83] ER=1

at66c.txt Matsui (1979) [80] ER=1.5

at163a.txt Bauer (1984) [11] ER=1.05

mk142a.txt Knystautas (1982) [56] ER=1
